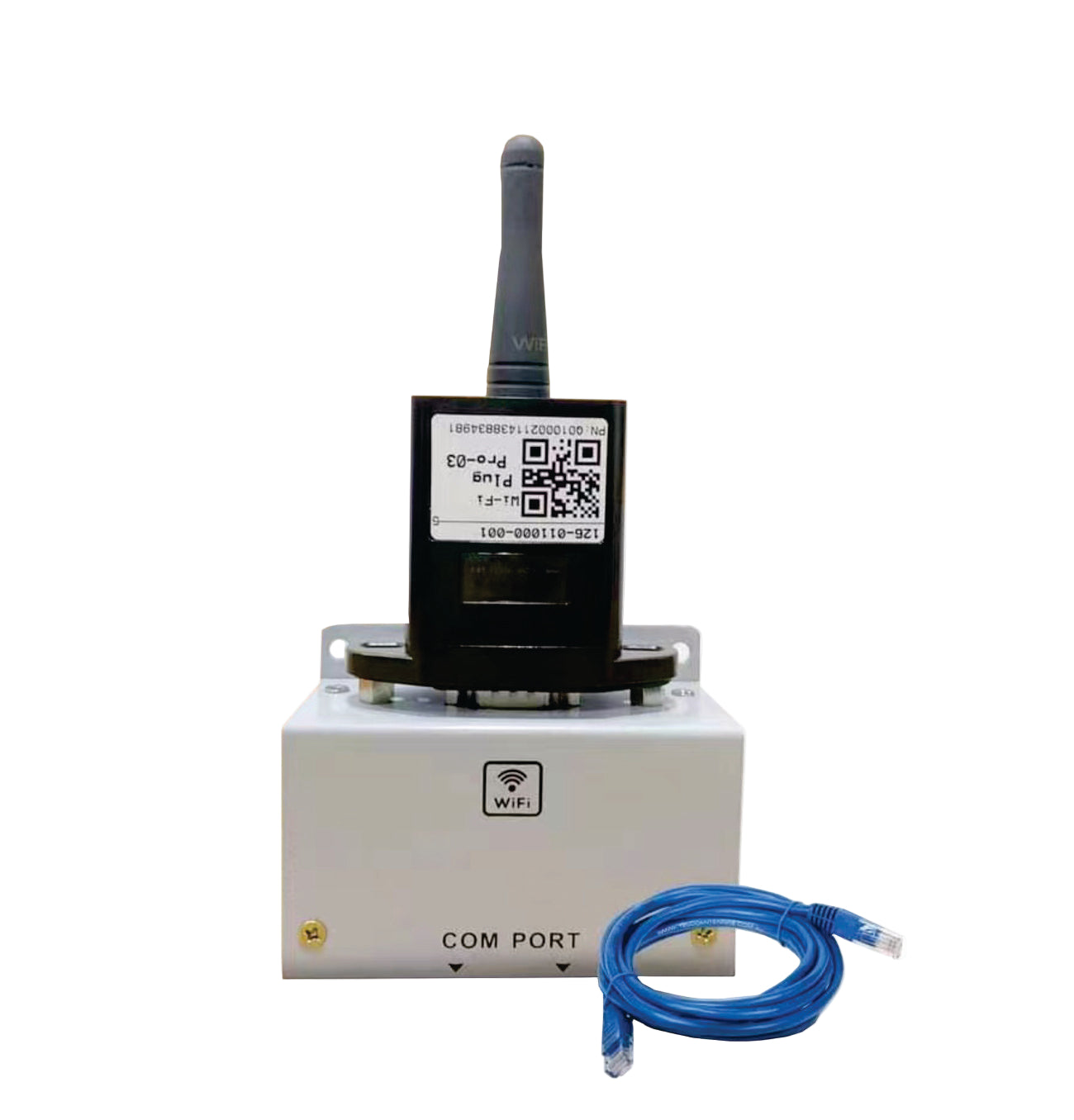

SAKO - Remote Wifi for Solar Inverters

Features:

• Dimensions (length/width/height).: 65*70.2*29.6mm
• Weight: 70g
• Degree of protection: IP65
• Rated voltage: DC5V~12V
• Maximum current: 800mA(DC5V)
• Working temperature: -30°C ~ +85°C
• Storage temperature: -40°C ~ +90°C
• External interface:
• RJ-45: Used for communication and power supply
• Working LED: Power supply, networking, data transmission, data reception

Hardware Part:

• Data entry mode: RS-232
• Data output mode: Wi-Fi
• RS-485 Baud rate: 9600bps(default)
• Hardware watchdog: Support

Wi-Fi Part:

• Operating frequency: 2.412GHz-2.484GHz
• Wireless standards: 802.11 b/g/n
• Antenna gain: 2.5dBi
• Antennae: External
• Data rate: 11Mbps@11b, 54Mbps@11g, 72Mbps@11n
• Hardware encryption: WEP, WPA/WPA2
• Communication distance: 100 m(An open environment)
• Work pattern: AP+STA(Coexistence pattern)
• Supported device protocols: Modbus-RTU(mainstream), Non Modbus-RTU
• Supported network layer protocols: Modbus-TCP
• Software watchdog: Support
• Built-in server language: Chinese, English
• Data Upload period: 5min(default)
• Parameter Configuration Mode: APP or Built-in Server
• Number of clients in AP mode: 1 (preemptive)
• Cloud Server: Support
• Number of connected devices: 1

Product Code: S-REM-WIFI

These products should be installed by a professional solar installer.
